Adding ApplicationBar in Windows Phone 7 using Expression Blend

In one of my previous posts , i talked about Adding the Application Bar in Visual Studio . In this blog post , I will explain about adding the Application Bar in Expression Blend .

Expression Blend provides more Designer support while Adding the Application Bar when compared to Visual Studio .

Here are the steps to add the Application Bar in the Expression Blend .

• Go to Microsoft Expression Blend for Windows Phone

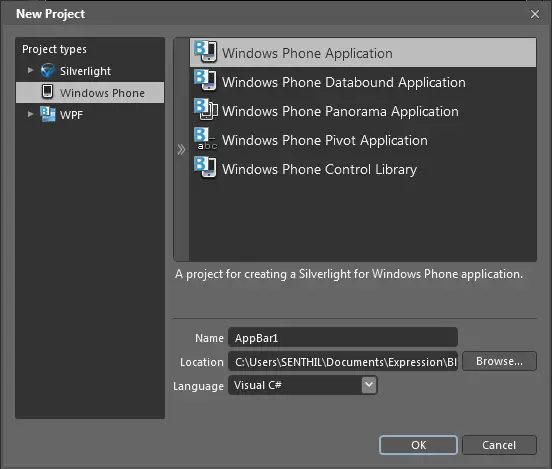

• Click on the new Project and select the template windows phone application in the Expression Blend and provide the project name and click on Ok

• You might see that there is no precommented xaml code like the one that was generated while creating the project in Visual Studio 2010 .

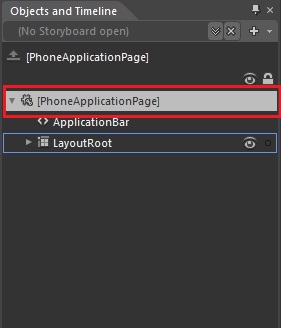

• Select the Phone ApplicationPage in the Objects and TimeLine

• Check the Common Properties group from the Properties Tab . You can find it in the right side of the Window .

• You should be able to find the ApplicationBar property as well as the New Button to create the ApplicationBar ( Missing in VS2010 ) . Click the new Button to add the ApplicationBar .
• Now , the Common propeties groub will be expanded to show more properties for the ApplicationBar like Adding the Icon Buttons and MenuItems etc .

• Click on the Button (…) on the Buttons Property to open the popup window to enter the Icon Buttons

• Click on the Add another item Combo and select ApplicationBarIconButton and provide the IconUri and Text for the Icon Buttons . Note the Default icons that are available are displayed in the dropdown of the IconUri . You can find more of the icons from the SDK installation path : “C:\Program Files\Microsoft SDKs\Windows Phone\v7.0\Icons”
• Similarly , You can add the MenuItem from the … Button next to the MenuItems(Collection) in the Common Properties . A popup window will show up when clicked on the Button  , enter the menu name etc … and Click Ok .

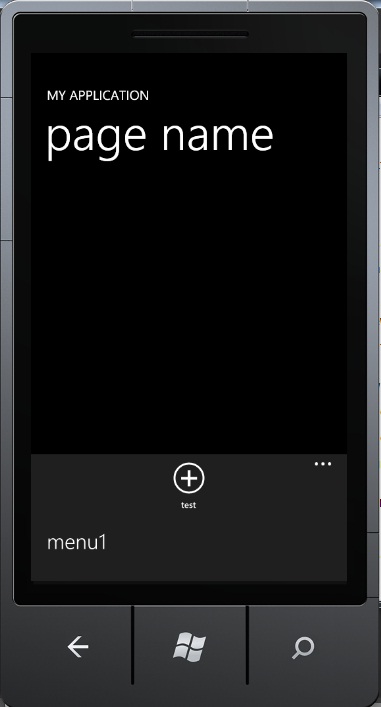

• Now , run the project , you should be able to See the added ApplicationBar with the Menu item and the Icon Button .

Thats it , the xaml code is generated automatically as we added menu items in the designer .

Easy wasn’t it ??

References

• MSDN : Application Bar for Windows Phone
• Video : Using the ApplicationBar for Windows Phone
